เครื่องพิมพ์อิงค์เจ็ท Canon inkjet PIXMA TS307a Print-Copy
Product Specifications
Print Head/Consumables |
|
Number of Nozzles | Total 1,280 nozzles |

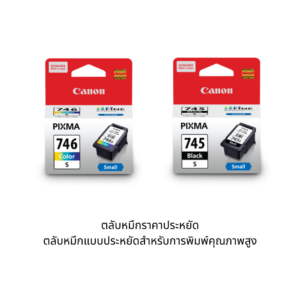

Ink Cartridge (Type/Colours) | PG-745S (Pigment Ink/Black) |
CL-746S (Dye-Based/Colour) | |
Maximum Print Resolution | 4,800 (horizontal)*1 x 1,200 (vertical) dpi |
Print Speed*2(Approx.) | |
Document (ESAT/Simplex) | 7.7 / 4 ipm (mono/colour) |
Photo, 4 x 6″ | 65 sec |
(PP-201/Borderless*3) | |
Paper Handling | |
Print Margin |
|
Bordered Printing | LTR: |
Top: 3 mm, Bottom: 5 mm, Left: 6.4 mm, Right: 6.3 mm | |
Others: | |
Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm | |
Paper Size | |
Rear Tray | A4, LTR, 4 x 6″, 5 x 7″ |
[Custom Size]*4 | |
Width: 89 – 215.9 mm | |
Length: 127 – 676 mm | |
Maximum Capacity | |
Rear Tray | Plain Paper (A4, LTR, 64 g/m²): 60 |
Photo Paper Plus Glossy II (PP-208, 4 x 6″): 20 | |
Paper Weight | Plain Paper: 64 – 105 g/m² |
Canon Paper: Approx. 275 g/m² (Max.) | |
Network | |
Protocol |
|
Type | TCP/IP |
Wireless LAN | |
Type | IEEE802.11b/g/n |
2.4 GHz, Supported Channels: 1 – 13 | |
Security | WEP 64/128 bit |
WPA-PSK (TKIP/AES) | |
WPA2-PSK (TKIP/AES) | |
Direct Connection (Wireless LAN) | Available (AP Mode only) |
Printing Solutions | |
Canon Printing Apps |
|
Mobile | Canon PRINT, Easy-PhotoPrint Editor, Creative Park |
Others | PosterArtist Lite, PosterArtist (Web) |
Mobile/Cloud Printing Solutions | AirPrint, Mopria, Canon Print Service (Android), Direct Wireless, Cloud Service |
System Requirements | |
OS System Compatibility*5 |
Windows 11 / 10 / 8.1 / 7 SP1*6 |
macOS 11.7.6 ~ 14 or later | |
Chrome OS | |
General Specifications | |
Interface |
USB 2.0 |
Operating Environment*7 | |
Temperature | 5 – 35°C |
Humidity | 10 – 90% RH (no dew condensation) |
Recommended Environment*8 | |
Temperature | 15 – 30°C |
Humidity | 10 – 80% RH (no dew condensation) |
Storage Environment | |
Temperature | 0 – 40°C |
Humidity | 5 – 95% RH (no dew condensation) |
Quiet Mode | Available |
Acoustic Noise*9 | |
Plain Paper (A4, Mono) | 54 dB(A) |
Power Requirements | AC 100 – 240 V, 50/60 Hz |
Power Consumption (Approx.) | |
OFF | 0.2 W |
Standby | 2.1 W |
Operation*10 | 10 W |
Dimensions (W x D x H) | |
Factory Configuration | 430 x 282 x 143 mm |
Output Trays Extended | 430 x 558 x 212 mm |
Weight | 2.9 kg |
Page Yield*11 | |
Plain Paper |
A4 Colour Documents*12: |
Standard: | |
PG-745S: 100 | |
CL-746S: 100 | |
Optional: | |
PG-745: 180 | |
CL-746: 180 | |
PG-745XL: 300 | |
CL-746XL: 300 | |
Photo Paper (PP-201) | 4 x 6″ Photos*13: |
Standard: | |
PG-745S: 835*14 | |
CL-746S: 32 | |
Optional: | |
PG-745: 1445 | |
CL-746: 55 | |
PG-745XL: 2720*14 | |
CL-746XL: 90 |
